Drawer Slides

V2 Soft Close 2 sections of slides

Thickness : 1.2 x 1.2mm

Pin lock

Load capacity: 25KG, 50,000 times

Package : 10 sets / carton

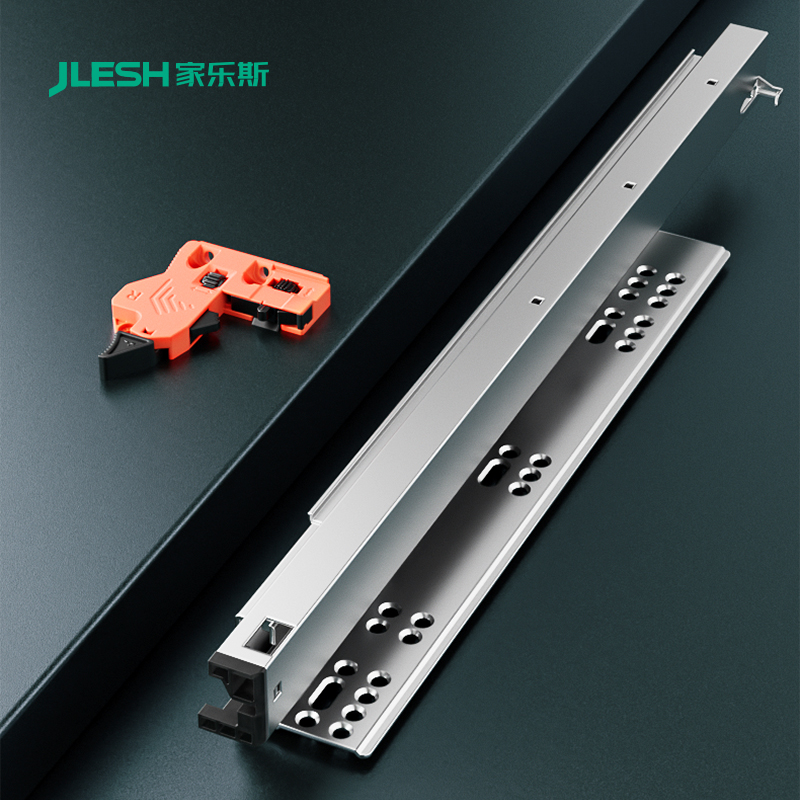

V6 Soft Close 3 sections of slides

Thickness : 1.4 x 1.4 x 1.4mm

2D adjustment handle

Load capacity: 30KG, 50,000 times

Package : 10 sets / carton

V2 Soft Close 2 sections of slides

Thickness : 1.2 x 1.2mm

1D adjustment handle

Load capacity: 25KG, 50,000 times

Package : 10 sets / carton

Length: 250-550 mm (10'' to 22'')

Full Extension

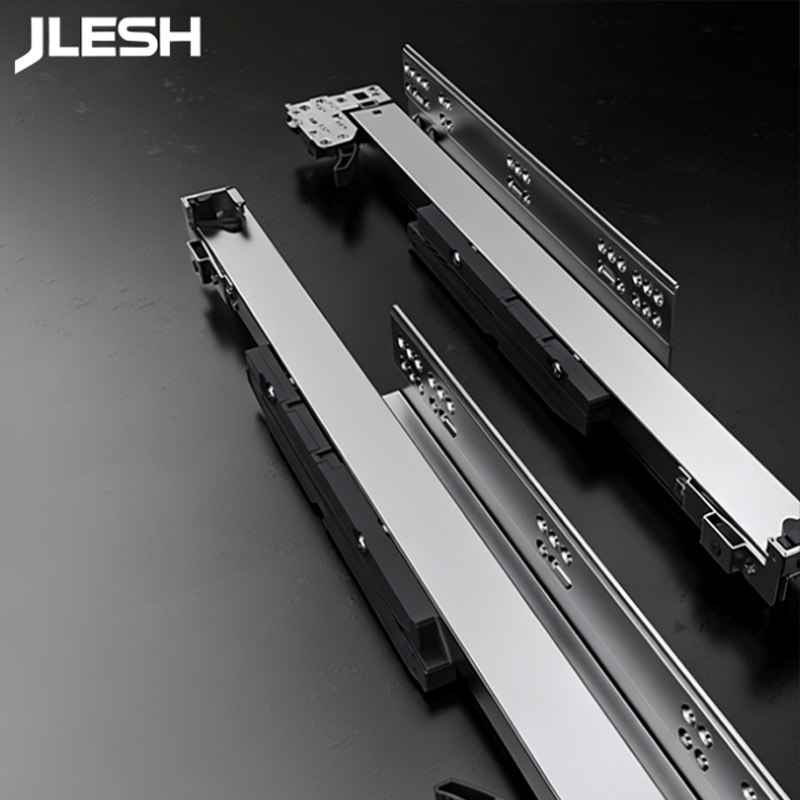

Outer Damping
More than 50,000 opening and closing tests with a load of 40KG
Drawer height adjustment: 0~+3mm.
Drawer depth adjustment: 0~+5mm.
Drawer width adjustment:±1.5mm.

Drawer Tilt Adjustment +4mm

Package: 6 sets/Carton.

It represents the ideal solution for the user who wants to use a hidden slide under the drawer. The wide range gives the opportunity to find the product that suits best the needs, choosing between different lengths (from 250 to 550 mm)

It represents the ideal solution for the user who wants to use a hidden slide under the drawer. The wide range gives the opportunity to find the product that suits best the needs, choosing between different lengths (from 250 to 550 mm)

It represents the ideal solution for the user who wants to use a hidden slide under the drawer. The wide range gives the opportunity to find the product that suits best the needs, choosing between different lengths (from 250 to 550 mm)

The concealed sliding rail boasts built-in synchronization, full extension, silent operation, and gentle self-closing, fully preparing you for a peaceful life.

It represents the ideal solution for the user who wants to use a hidden slide under the drawer. The wide range gives the opportunity to find the product that suits best the needs, choosing between different lengths (from 250 to
550 mm)
