Length: 250-550 mm (10'' to 22'')
Full Extension

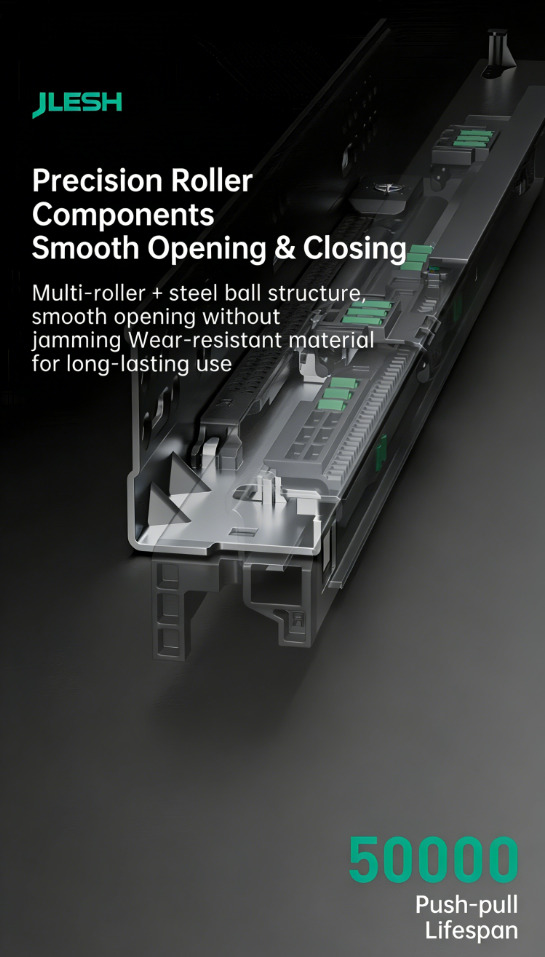

More than 50,000 opening and closing tests with a load of 40KG

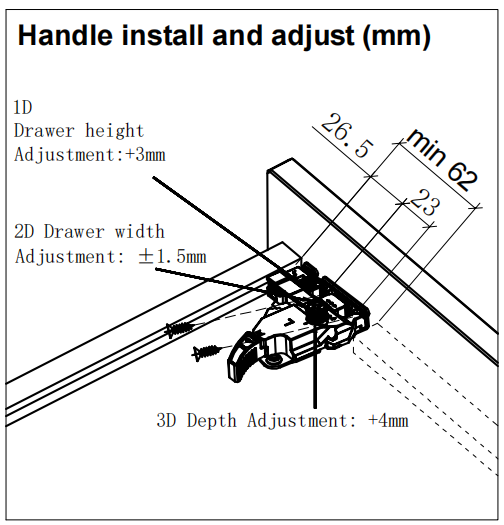

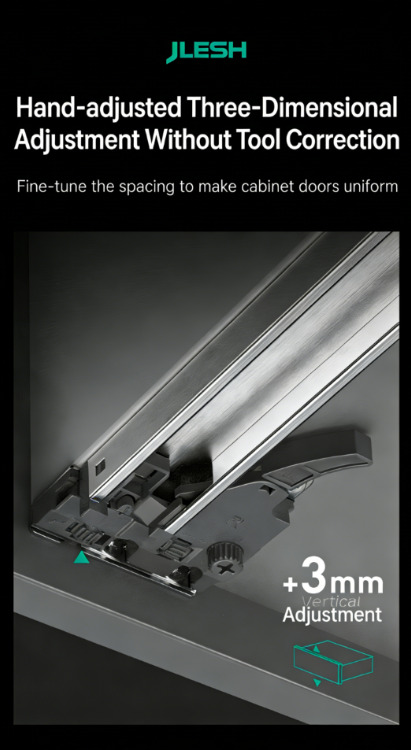

Drawer height adjustment: 0~+3mm
Drawer depth adjustment: 0~+5mm
Drawer width adjustment:±1.5mm

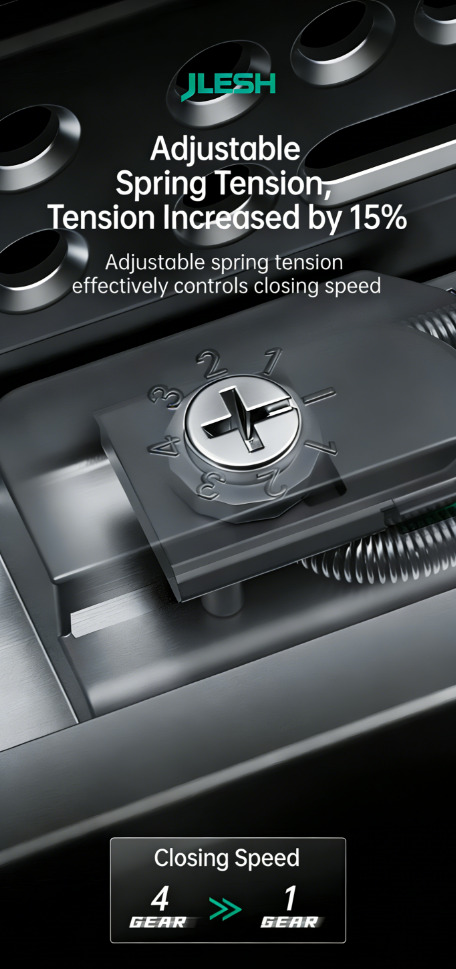

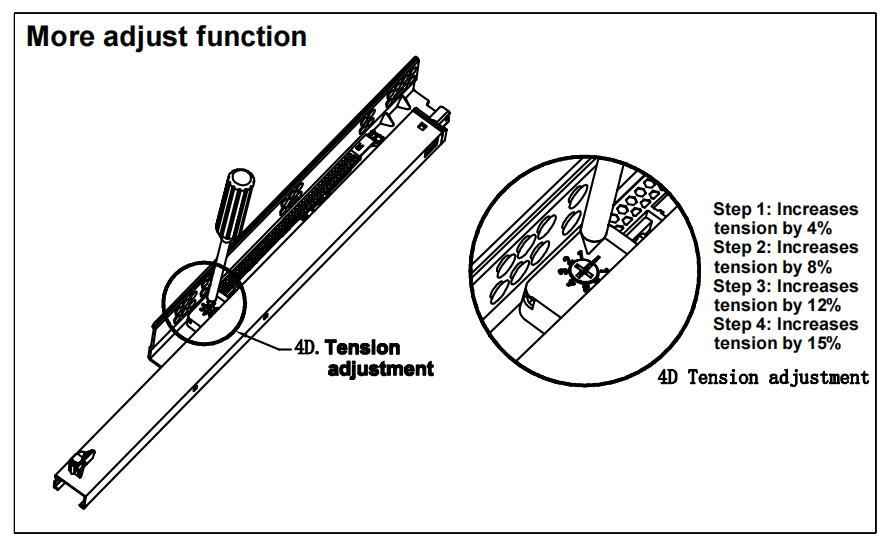

Tension Adjustment: Step 1 - 4% Increase in Force, Step 2 - 8% Increase in Force, Step 3 - 12% Increase in Force, Step 4 - 15% Increase in Force.
