Three-sections Full Extension Synchronized Push to Open with bar Concealed Drawer Slides (1)

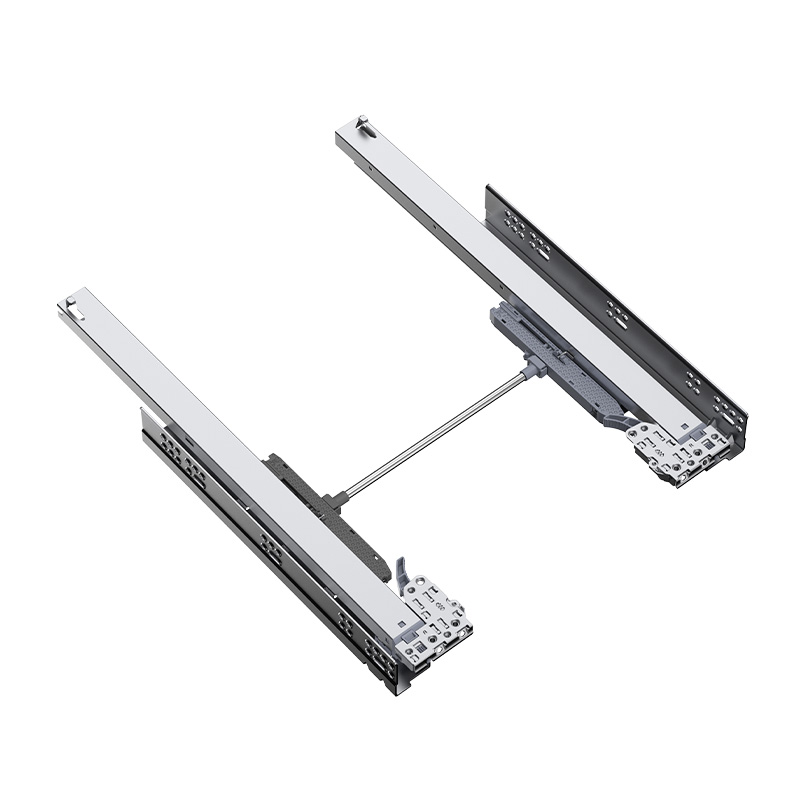

Three-sections Full Extension Synchronized Push to Open with bar Concealed Drawer Slides (3)

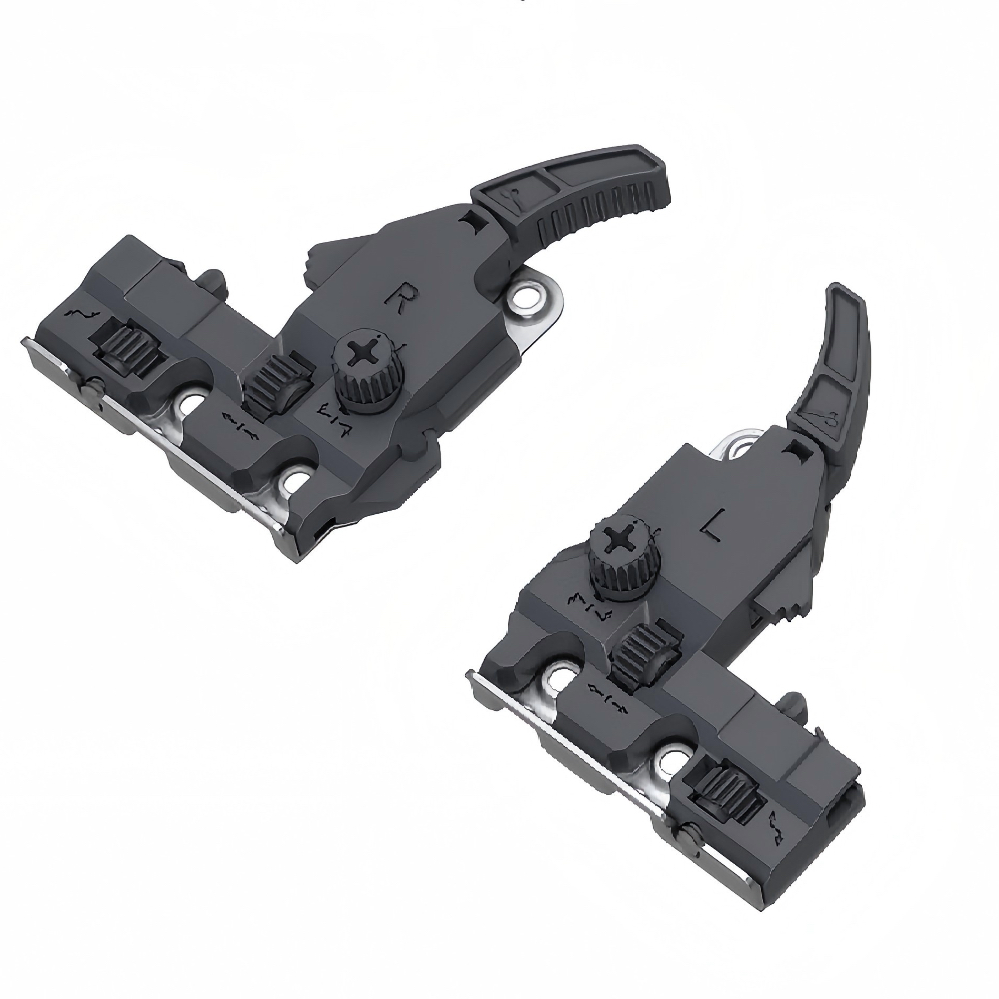

Three-sections Full Extension Synchronized Push to Open with bar Concealed Drawer Slides (2)

Three-sections Full Extension Synchronized Push to Open with bar Concealed Drawer Slides

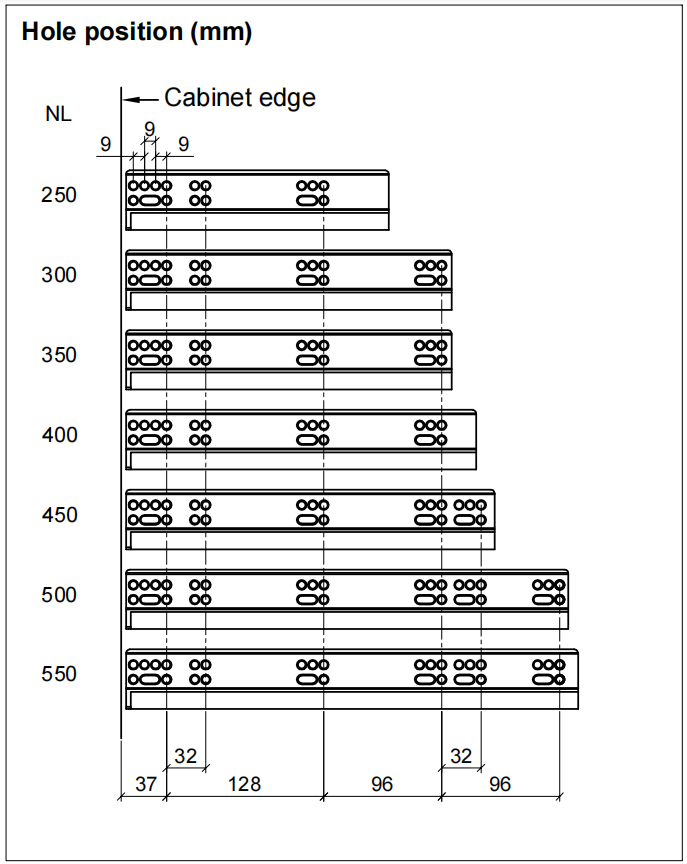

Length: 250-550 mm (10'' to 22'').

Full extension
Loading Capacity: 35 kg.

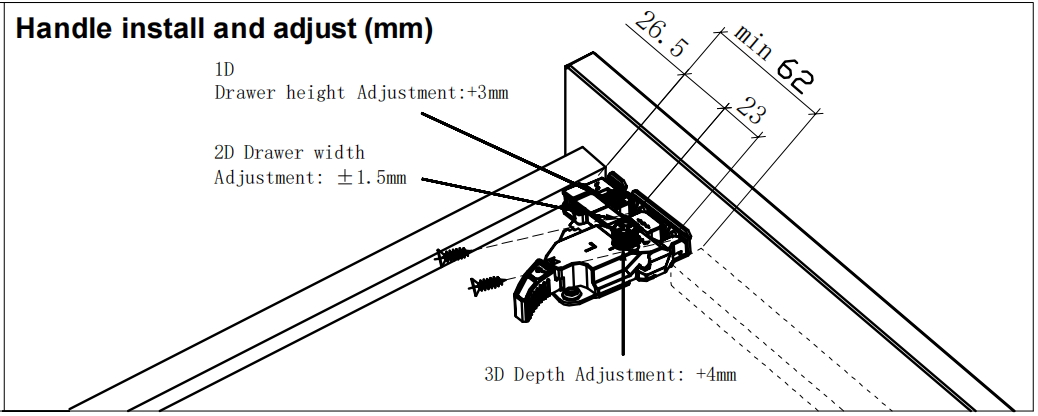

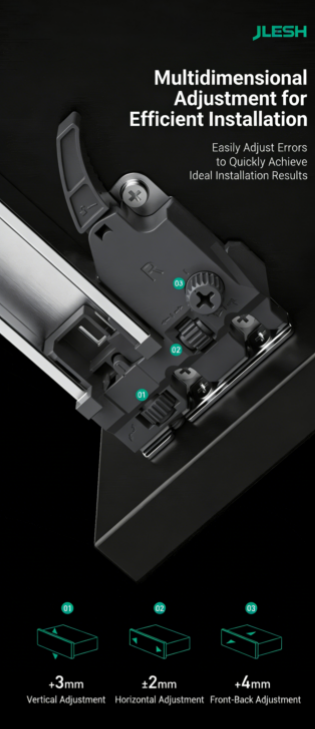

Drawer height adjustment: +3mm.
Drawer depth adjustment: +4mm.
Drawer width adjustment:±1.5mm.
Package: 1 set/box; 6 sets/Carton.

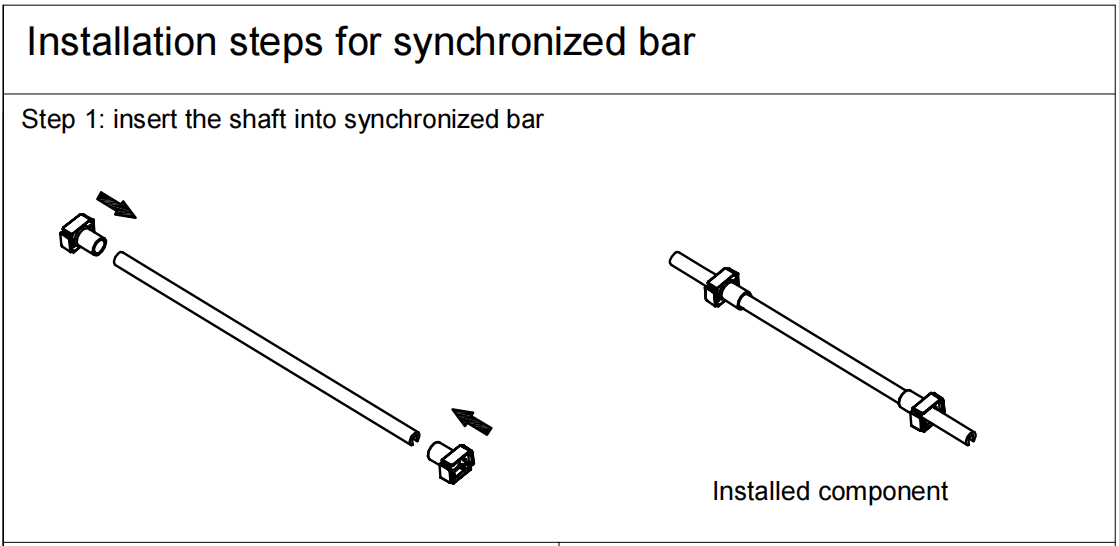

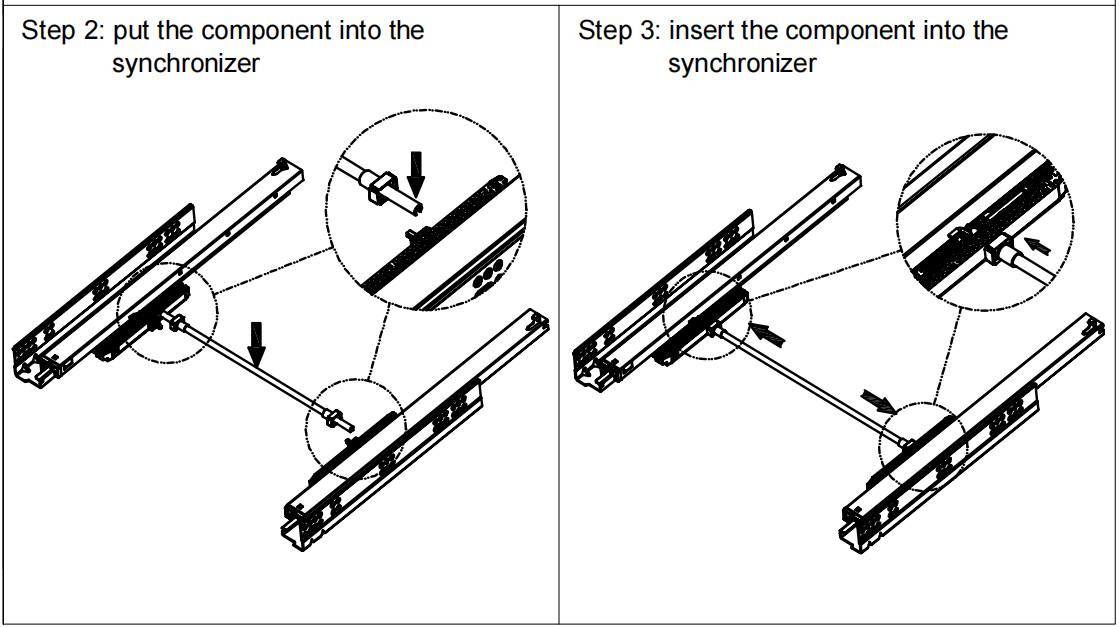

Accessory:1.1 metre stabilizing bar/set
